Nominal Size (mm) | Pleat Depth | Filter Class | Rated Air Flow | Initial Pressure Drop | Media Area | Weight | ||
Width | Hight | Depth | (mm) | (m3/h) | (Pa) | (m2) | (~kg) | |
610 | 610 | 69 | 50 | H14 | 602 | 125 | 9.6 | 5.4 |
610 | 1220 | 69 | 50 | H14 | 1205 | 125 | 19.2 | 10.77 |
610 | 1525 | 69 | 50 | H14 | 1507 | 125 | 24 | 13.46 |
610 | 1830 | 69 | 50 | H14 | 1808 | 125 | 28.8 | 16.15 |

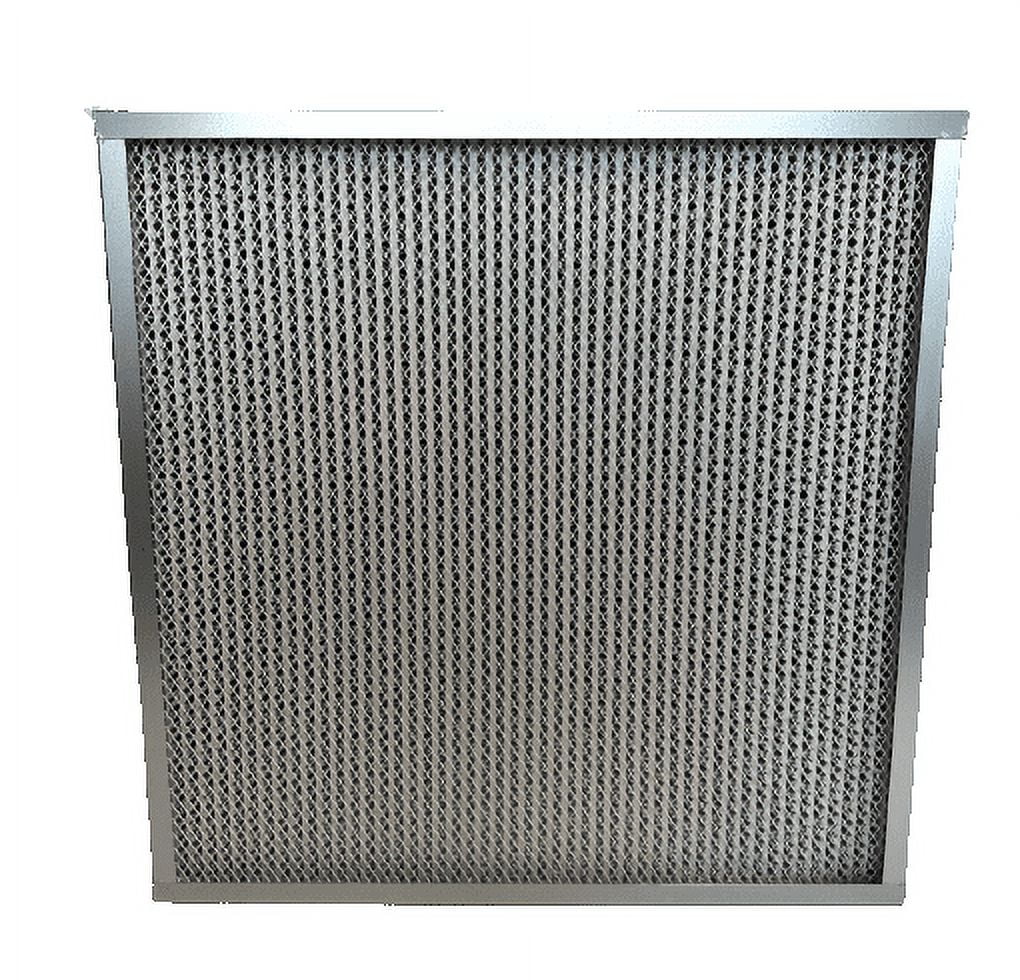

The H14 Unidirectional HEPA Filters offer superior air filtration for critical environments where exceptional air purity is essential. These high-efficiency filters are designed to remove 99.995% of particles at the Most Penetrating Particle Size (MPPS), making them ideal for cleanrooms, laboratories, and other sensitive applications.
Key Features:
- H14 class filtration efficiency: >99.995% at MPPS
- Initial differential pressure: 125 Pa at nominal volume flow rate
- PLC controlled media spacing technology for optimal airflow
- Durable anodized aluminum frame with corner support
- Multiple gasket options, including gel seal for knife edge sealing technology
Technical Specifications:
- Filter class: H14 (EN 1822:2009)
- Recommended final differential pressure: 600 Pa
- Maximum operating temperature: 80°C
- Maximum relative humidity: 100%
Applications:
- Mushroom cultivation
- Pharmaceutical cleanrooms
- Microelectronics manufacturing
- Healthcare facilities
- Advanced research laboratories
- Biotechnology environments
Quality Assurance:
- Individual factory testing to EN 1822:2009 and ISO 29463 standards
- CNC probe scanning for leak detection and efficiency measurement
