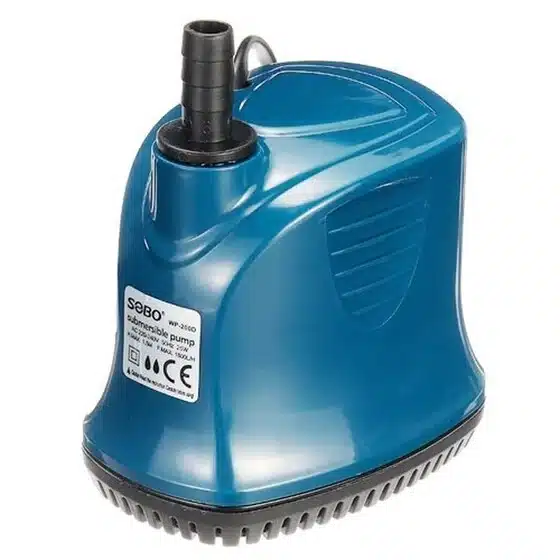

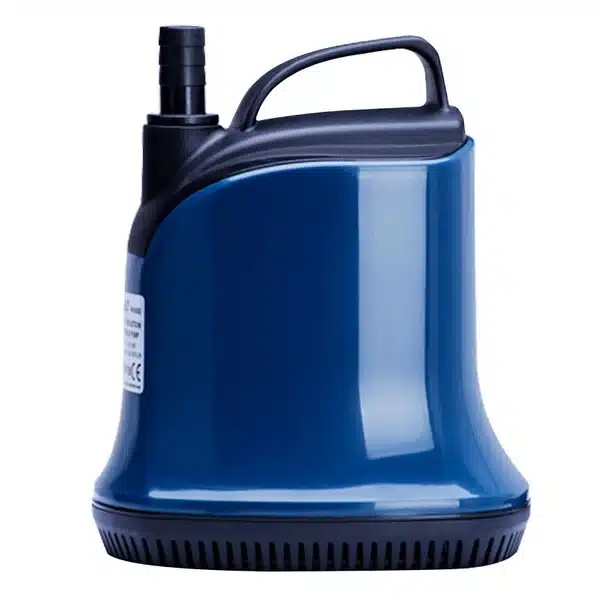

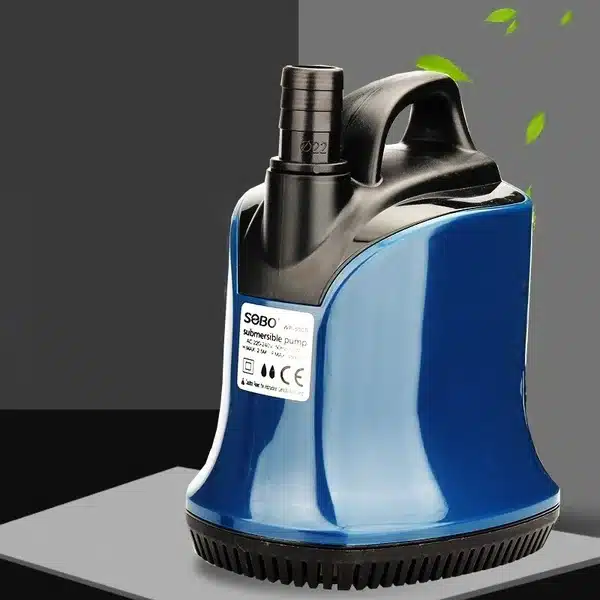

SOBO D Series Submersible Pumps
- Water Suction Level at 1cm from base
- 360 Water Suction
- Long Lasting Waterproof Ceramic Shaft
- Suitable for fountains, ponds, fresh and sea water aquariums
- High lift, large flow
- Energy saving
- Environmental friendly

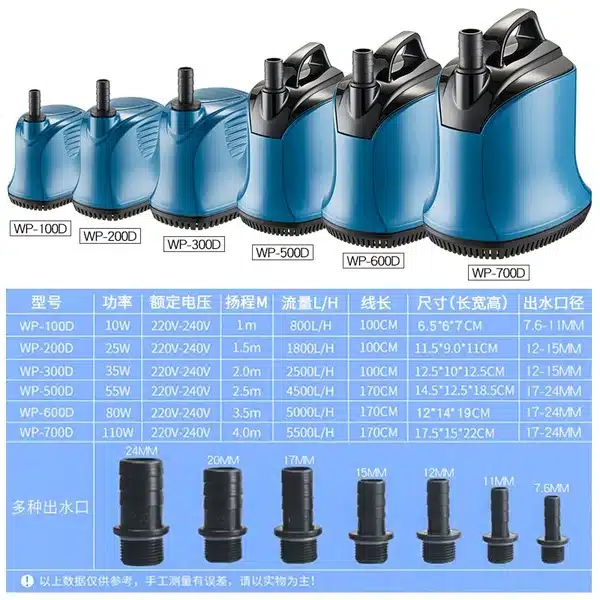

Model | Power | F.Max | H.Max | Wire Length | Size | Outlet |
WP-100D | 7W | 560L/H | 0.7M | 100 CM | 6.5*6*7 CM | 7.6-11 MM |
WP-200D | 25W | 1800L/H | 1.5M | 100 CM | 11.5*9.0*11 CM | 12-15 MM |
WP-300D | 35W | 2500L/H | 2.0M | 100 CM | 12.5*10*12.5 CM | 12-15 MM |
WP-500D | 55W | 4500L/H | 2.5M | 170 CM | 14.5*12.5*18.5 CM | 17-24 MM |
WP-600D | 80W | 5000L/H | 3.5M | 170 CM | 12*14*19 CM | 17-24 MM |
WP-700D | 110W | 5500L/H | 4.0M | 170CM | 17.5*1522 CM | 17-24 MM |
SPECIAL NOTE
Please take special note when choosing a pump model. The flow rate and head height is not an indication that pumps produce the max flow at max height. At max height pumps produce 0 l/h flow. Pipe thickness also play a vital role in producing head height, the thicker the pipe, the stronger the pump must be to produce good lift. Always double to be safe…
MORE FEATURES
– High performance motor with innovative electronics and end energy saving up to 65%
– Super quiet operation
– Used in marine water and fresh water
– No chopper element
– With wear-resistant ceramic shaft
– Longer operation life
CAUTION
– Always disconnect from the electrical socket before performing maintenance
– Always ensure the pump is submerged in water
– Do not lift the pump unit by pulling the wire ( power cord)
– The power supply cord provided for this appliance cannot be replaced
MAINTENANCE
A clogged or dirty intake screen will generally reduce the performance of the pump. Hence, you must wash away the surrounded debris frequently.
Remove the front cover and the impeller cover, followed by the impeller unit. Use a small brush to clean the cylinder or just wash away the debris under running water.
