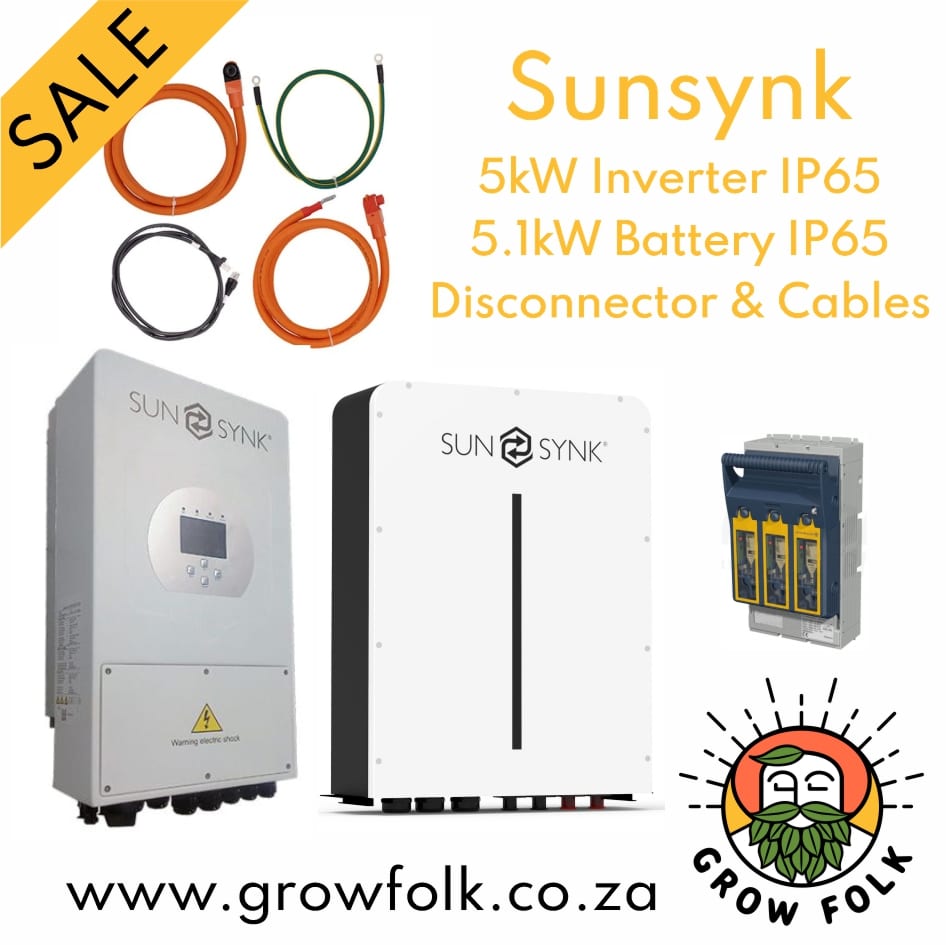

Sunsynk 5kW Hybrid PV Inverter 48V with Wifi Dongle – IP65 rating
The Sunsynk Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.
Features:
220V single phase, pure sine wave inverter
Self consumption & feed-in to the grid
Auto re-start while AC is recovering
Programmable supply priority for battery or grid
Programmable multiple operation modes; on-grid / off-grid & UPS
Configurable battery charging – current / voltage based on applications by LCD setting
Configurable AC / solar / generator charger priority by LCD setting
Compatible with mains voltage or generator power
Overload / over-temperature / short-circuit protection
Smart battery charger designer optimised battery protection
Limit-function installed to prevent excess power overflow to grid
Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
Smart settable 3-stage MPPT charging for optimised battery performance
Time of use function
Smart load function
Sunsynk 5.1kWh 51.2V LFP Wall Mount Lithium-ion Battery – IP65 rating
The spring series lithium iron phosphate battery is one of new energy storage products developed and produced by Sunsynk, it can be used to support reliable power for various types of equipment and systems. The series is especially suitable for applications of high power, limited installation space, restricted load-bearing and long life cycle. The battery has a built-in management system, which can manage and monitor cell information, including voltage, current and temperature. What’s more, BMS can balance cell charging and discharging to extend cycle life. Multiple batteries can connect in parallel to expand capacity and power for larger capacity and longer power supporting duration requirements.
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 100 | |
| Scalability | Max 32 pcs in parallel (163.8kWh) | |
| Nominal Voltage | 51.2 | |
| Operating Voltage | 43.2 – 57.6 | |
| Energy (kWh) | 5.12 | |
| Usable Energy (kWh) [1] | 4.61 | |
| Charge / Discharge Current (A) | Recommend [2] Max [2] Peak [2 mins, 25°C] |
50 100 150 |
| Recommend Depth of Discharge | 90% | |
| Dimension (w/h/d) mm | 440 x 640 x 140 | |
| Weight Approximate (kg) | 50 | |
| Master LED Indicator | 5 LED (20%-100%) 3 LED (working, alarming, protecting) |
|
| IP Rating of Enclosure | IP65 | |
| Working Temperature | Charge: 0°C – 55°C Discharge: -20°C – 55°C |
|
| Storage Temperature | 0°C – 35°C | |
| Humidity | 5% – 95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000 (25±2°C, 0.5C, 70%EOL) | |
| Installation | Wall Mounted or 19-inch standard cabinet | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 5 years | |
| Life Cycle Power During Warranty Period [3] | 16MWh@70%EOL | |
| Certification | IEC62619, CE, UN38.3 | |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
—————————————————————————————————————————————————————————————
Battery Cable Set with Sunsynk Battery Connectors
—————————————————————————————————————————————————————————————
KETO Battery Disconnector with 125A Fuses
This part is made up of the following items:
1 x KETO-00 Fuse-switch-disconnector KETO size 00 body (battery isolator)
2 x N5014607-125A NH Fuse-link 125A for KETO-00
Add robust and secure battery disconnection with the Keto range from Jean Müller. They are well known for their attention to detail in ensuring maximum user safety.
KETO size 00
Maximum DC current = 125A
DC voltage rating: 440V
Overall width: 106mm System size: 195mm
Terminals: M8 lugs with cable area from 25-95mm2
DIN rail mountable
INSTALLER NOTICE: Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.
BEFORE INSTALLATION, please ensure that you check that the Inverter is updated to the latest firmware version. Latest Version 3374
All new Sunsynk Inverters come with the new data logger
For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
