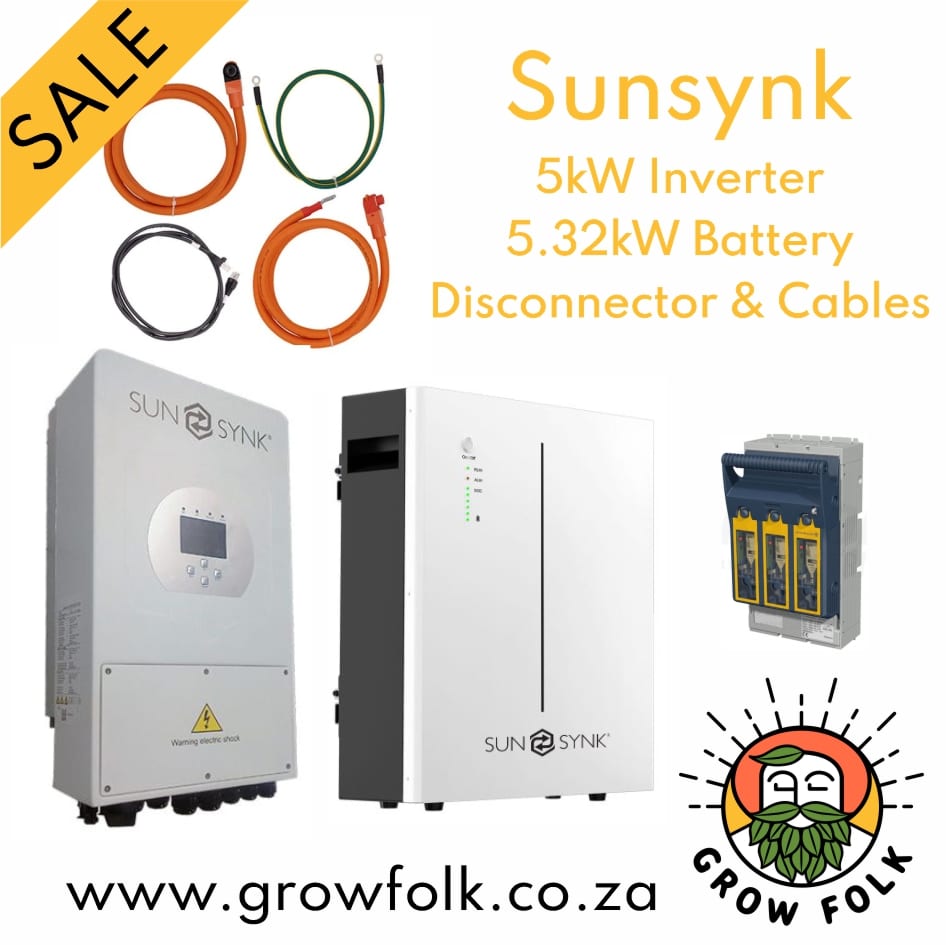

Sunsynk 5kW Hybrid PV Inverter 48V with Wifi Dongle – IP65 rating
The Sunsynk Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.
Features:
220V single phase, pure sine wave inverter
Self consumption & feed-in to the grid
Auto re-start while AC is recovering
Programmable supply priority for battery or grid
Programmable multiple operation modes; on-grid / off-grid & UPS
Configurable battery charging – current / voltage based on applications by LCD setting
Configurable AC / solar / generator charger priority by LCD setting
Compatible with mains voltage or generator power
Overload / over-temperature / short-circuit protection
Smart battery charger designer optimised battery protection
Limit-function installed to prevent excess power overflow to grid
Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
Smart settable 3-stage MPPT charging for optimised battery performance
Time of use function
Smart load function
Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V
Technical Specification
Performance
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 104Ah |
| Battery Energy 1 | 5320 Wh |
| Charge Voltage | 55.68~56.16Vdc |
| Discharge Voltage | 45.6-56.16 Vdc |
| Nominal Charge/Discharge Current | 50A |
| Nominal Charge/Discharge Power | 2500W |
| Max Charge/Discharge Current | 100A |
| Max Charge/Discharge Power | 5000W |
| Short Circuit Current | 350A |
| Warranty | 5 Years |
Communication
| Display | SOC status indicator, LED indicator |
| Communication | RS232、RS485、CAN |
General Specifications
| Dimension( W×D×H mm ) | 450×150×533mm |
| Weight (Kg) | 45kg |
| Installation | Floor stand or Wall mounted |
| Working Temperature 2 | -20℃ ~ 60℃ |
| Storage Temperature | ≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months |
| Operating / Storage / humidity | ≤ 95%RH |
| Max Operating Altitude | ≤2000m |
| IP Rating | IP20 |
| Cell Technology | LiFePO4，Lithium Iron Phosphate |
| Cycle life 3 | 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
| Scalability | Max 8 batteries in parallel |
—————————————————————————————————————————————————————————————
Battery Cable Set with Sunsynk Battery Connectors
—————————————————————————————————————————————————————————————
KETO Battery Disconnector with 125A Fuses
This part is made up of the following items:
1 x KETO-00 Fuse-switch-disconnector KETO size 00 body (battery isolator)
2 x N5014607-125A NH Fuse-link 125A for KETO-00
Add robust and secure battery disconnection with the Keto range from Jean Müller. They are well known for their attention to detail in ensuring maximum user safety.
KETO size 00
Maximum DC current = 125A
DC voltage rating: 440V
Overall width: 106mm System size: 195mm
Terminals: M8 lugs with cable area from 25-95mm2
DIN rail mountable
* Must be installed by qualified professional installer.
* When using the Sunsynk inverter in combination with the Sunsynk battery, the warranty by Sunsynk on the inverter increases to 10 years and battery is 10 years. You need to register your warranty with Sunsynk www.sunsynk.org/warranty
INSTALLER NOTICE: Installations with Sunsynk products now need to be registered here to gain full activation of the warranty.
BEFORE INSTALLATION, please ensure that you check that the Inverter is updated to the latest firmware version. Latest Version 3374
All new Sunsynk Inverters come with the new data logger
For firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
